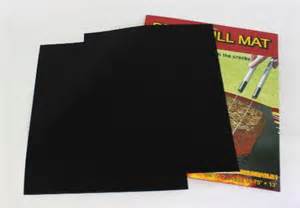

NON-STICK BBQ GRILL MAT,oven liner

100% Satisfaction guaranteed or Your money back.

We will send the quotation to your email within 24 hours.

Product Description

1. Manufacturer
2.nonstick, easy cleaning, re-usable;chemical resistance;
3. Complete specification
4. FDA/.SGS ,.PFOA free

Product Details

Model	RD9008-RD9090
Minimum Order Quantity	100 Piece/Pieces
Supply Ability	200 Piece/Pieces per Day
Payment Terms	L/C,T/T,Western Union
Port	SHANGHAI
Certification	.FDA/SGS/REACH/PONY
Brand	RUIDA
Place	JIANGSU
Packaging	he products are packed in cartons according to their size

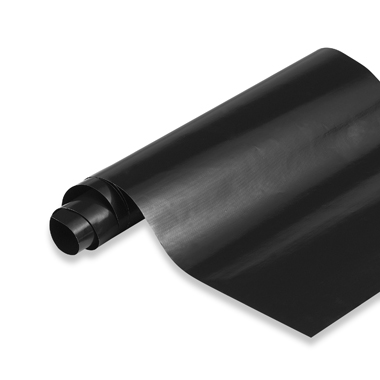

ptfe/teflon fiberglass fabric

fiberglass fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE(Teflon) resin then make it into various PTFE(Teflon) fabric in different thickness and widths.

Ruida PTFE Fabric Characteristic :
Generally, PTFE coated fiberglass fabric exhibits the following high-performance characteristics:
Non-stick surface
Excellent temperature resistance: from -100°F - +500°F (-73°C - +260°C)
Chemically inert
High tensile strength
Ruida PTFE Fabric Application:
Designed for a wide range of applications,Ruida PTFE fabric is available in several grades to match specific performance requirements.
Ruida Premium-A+ Grad ptfe Fabric
Featuring an extra heavy coating of PTFE, Ruida Premium- A Grade Fabric delivers a super-smooth surface, perfect for advanced applications, including:
Release sheets for cooking and baking applications
Laminate separator sheets
Specialized heat-sealing
Demanding, non-stick applications
Ruida Standard-A Grade PTFE Fabric
With a smooth surface and superb non-stick properties, Ruida Standard-A Grade Fabric serves the widest range of applications, including:
Release sheets on heat-sealing machines and laminate presses
Non-stick surfaces for paints, adhesives and food products
Gaskets, seals and bearings for chemicals, oils and gases
Thermal insulation for high-temperature and chemical-resistant applications
Covers for hot plates, platens, chutes, hoppers, troughs and rolls
Ruida Mechanical-B+ Grade PTFE Fabric
Designed to deliver resistance to high temperatures and chemicals, Ruida Mechanical-B Grade Fabric utilizes a medium coating of PTFE. Typical applications include chemical-resistant laboratory aprons and protective curtains, such as:
Bottle washers and paint spraying curtains
Food packaging
Acid protection

Ruida Economy-B Grade PTFE Fabrics
Providing a light coat of PTFE, Taconic Economy-Grade Fabrics are designed for large volume applications which require cost-efficiency, yet still need high performance. Typical uses include:
Leaders for processing paper, plastics, metallic foils and cloth
Separator sheets for processing uncured rubber
The manufacture of abrasive wheels
Ruida Porous Bleeder & Filter PTFE Fabrics
These fabrics are available over a wide range of porosity. Principle applications include:
filtration
strainers
pollution abatement
Ruida Crease & Tear Resistant PTFE Fabric
Provides an unusually flexible material for use in applications where high tear-strength and good flex-life are demanded.
Ruida Anti-static PTFE Fabrics
Ruida black Anti-static PTFE fabrics is provided with a carbon loading giving semi-conductive and anti-static properties to the material. It eliminates or reduces static problems in belt and slip sheet applications.

Specification details:

Part Number	Overall Thickness (inches)	Coated Weight (lbs/yd2)	Tensile Strength Warp/Fill (lbs/in)		TearStrength Warp/Fill (lbs)	Max.Width(mm)



Premium Grade
9039	0.0029	0.27	95/55	1.5/0.9		3200
9012	0.0049	0.49	150/130	2.5/2.0		1250
9015	0.006	0.6	150/115	2.1/1.8		1250
9025	0.0099	1.01	325/235	7.5/4.0		2800
9028AP	0.011	1.08	320/230	5.4/3.6		2800
9045	0.0148	1.45	350/210	5.6/5.1		3200
Standard Grade
9007AJ	0.0028	0.25	90/50	1.7/0.9		1250
9010AJ	0.004	0.37	140/65	2.6/0.7		1250
9011AJ	0.0046	0.46	145/125	3.0/2.2		1250
9014	0.0055	0.54	150/140	2.0/1.5		1250
9023AJ	0.0092	0.94	250/155	4.9/3.0		2800
9035	0.0139	1.36	440/250	7.0/6.0		3200
9065	0.0259	1.76	420/510	15.0/8.0		4000
Mechanical Grade
9007A	0.0026	0.2	80/65	2.3/1.0		1250
9010A	0.004	0.37	145/135	2.3/1.6		1250
9021	0.0083	0.8	275/190	8.0/3.0		1250
9030	0.0119	1.14	375/315	7.0/6.0		2800
Economy Grade
9007	0.0026	0.17	70/60	2.9/0.8		1250
9010	0.004	0.36	135/115	3.0/2.7		1250
9023	0.0092	0.72	225/190	4.4/3.2		2800
9018	0.0074	0.7	270/200	8.0/4.0		1250
9028	0.0112	0.98	350/300	15.0/11.0		3200
9056	0.0222	1.34	320/250	50.0/40.0		4000
9090	0.0357	2.04	540/320	10.8/23.0		4000
Porous Bleeder & Filter
9006	0.0025	0.12	40/30	5.3/4.0		1250
9034	0.0135	0.77	175/155	21.0/12.0		3200
Crease & Tear Resistant
9008	0.0032	0.31	90/50	1.6/0.5		1250
9011	0.0046	0.46	125/130	4.1/3.7		1250
9014	0.0056	0.52	160/130	5.0/3.0		1250
9066	0.0261	1.8	450/430	50.0/90.0		4000
TAC-BLACK™ (Available anti-static)
9013	0.0048	0.45	170/140	2.2/1.8			1250
9014	0.0057	0.55	150/120	1.7/1.4			1250
9024	0.0095	0.92	230/190	4.0/3.0			2800
9024AS	0.0095	0.92	230/190	4.0/3.0			2800
9037AS	0.0146	1.39	405/270	8.5/7.2			3500

4. About us:

Jiangsu Ruida Electronic Materials Co., Ltd,affiliated to VK industry,is a professional manufacturer, committing to finishing and coating of advanced fabrics like Glass, Kevlar, Nomex with fluoropolymers.

With help of advanced machinery and equipment from weaving, dipping to coating and further processing, together with our coating expertise and fabrication experience, Ruida designs, manufactures and markets PTFE and silicone-coated fabrics and belting, along with an extensive line of pressure sensitive tapes for use in diverse industrial applications worldwide..

Our engineers conduct research and development activities regularly and

gives emphasis to the development of ways to manufacture more efficiently which help reduce costs, improve quality and match individual requirements.

The main series of our products are: PTFE coated fiberglass fabric, PTFE

open mesh belts, PTFE adhesive tapes, PTFE fusing belts & seamless belts, PTFE coated Kevlar fabric & mesh, Silicone coated fiberglass fabric etc.
