Non-stick PTFE coated Oven Basket /Baking Mesh Tray

100% Satisfaction guaranteed or Your money back.

We will send the quotation to your email within 24 hours.

Product Description

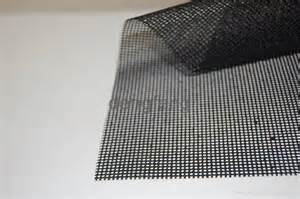

nonstick mesh sheet

1. width upto 4m;
2. high temperature resistance;
3. chemical resistance;
4. different colors & mesh

Product Details

Model	RD9008-RD9090
Minimum Order Quantity	100 Square Meter/Square Meters
Supply Ability	200 Square Meter/Square Meters per Day
Payment Terms	L/C,T/T,Wester Union
Port	SHANGHAI
Certification	FDA/SGS/REACH/PONY
Brand	RUIDA
Place	JIANGSU
Packaging	fiberglass fabric is packed in plastic bag, carton, pallet

PTFE(Teflon) coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE(Teflon) resin to make it into various of PTFE(Teflon) conveyor belt.

Usage:

PTFE(Teflon) open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.

Properties:

1. Outstanding temperature resistance (from -170ºC to +260ºC)

2. Resistant to corrosive agents

3. Low thermal mass

4. Controlled porosity

5. Superior non-stick surface, easy to clean

6. High dielectric strength

7. Dimensional stability

8. Resistance to UV, IR and HF

9. Non-toxic

10. Superior tracking

Styles and Specifications:

Item	Mesh Size	material	Thickness	Weight	Temperature resistance	Max Width	Tensile Strength
RD6001	1x1mm	fiberglass	0.5mm	370g/m²	-70-260°C	4000mm	310/290N/cm
RD6002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260°C	4000mm	350/310N/cm
RD6003	4x4mm	fiberglass (black)	1.0mm	400g/m²	-70-260°C	4000mm	390/320N/cm
RD6004	4x4mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	390/320N/cm
RD6007	4x4mm	Kevlar + fiberglass	1.2mm	600g/m²	-70-260°C	4000mm	895/370N/cm
RD6008	4x4mm	fiberglass	1.2mm	580g/m²	-70-260°C	4000mm	560/360N/cm
RD6010	4x4mm	Kevlar	1.0mm	500g/m²	-70-260°C	4000mm	900/600N/cm
RD6012	4x4mm	fiberglass (black)	1.0mm	550g/m²	-70-260°C	4000mm	395/370N/cm
RD6013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	360/300N/cm
RD6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260°C	4000mm	310/290N/cm
RD6015	2x2.5mm	fiberglass	0.9mm	600g/m²	-70-260°C	4000mm	390/320N/cm

About us:

Jiangsu Ruida Electronic Materials Co., Ltd,affiliated to VK industry,is a professional manufacturer, committing to finishing and coating of advanced fabrics like Glass, Kevlar, Nomex with fluoropolymers.

With help of advanced machinery and equipment from weaving, dipping to coating and further processing, together with our coating expertise and fabrication experience, Ruida designs, manufactures and markets PTFE and silicone-coated fabrics and belting, along with an extensive line of pressure sensitive tapes for use in diverse industrial applications worldwide..

Our engineers conduct research and development activities regularly and

gives emphasis to the development of ways to manufacture more efficiently which help reduce costs, improve quality and match individual requirements.

The main series of our products are: PTFE coated fiberglass fabric, PTFE

open mesh belts, PTFE adhesive tapes, PTFE fusing belts & seamless belts, PTFE coated Kevlar fabric & mesh, Silicone coated fiberglass fabric etc.
