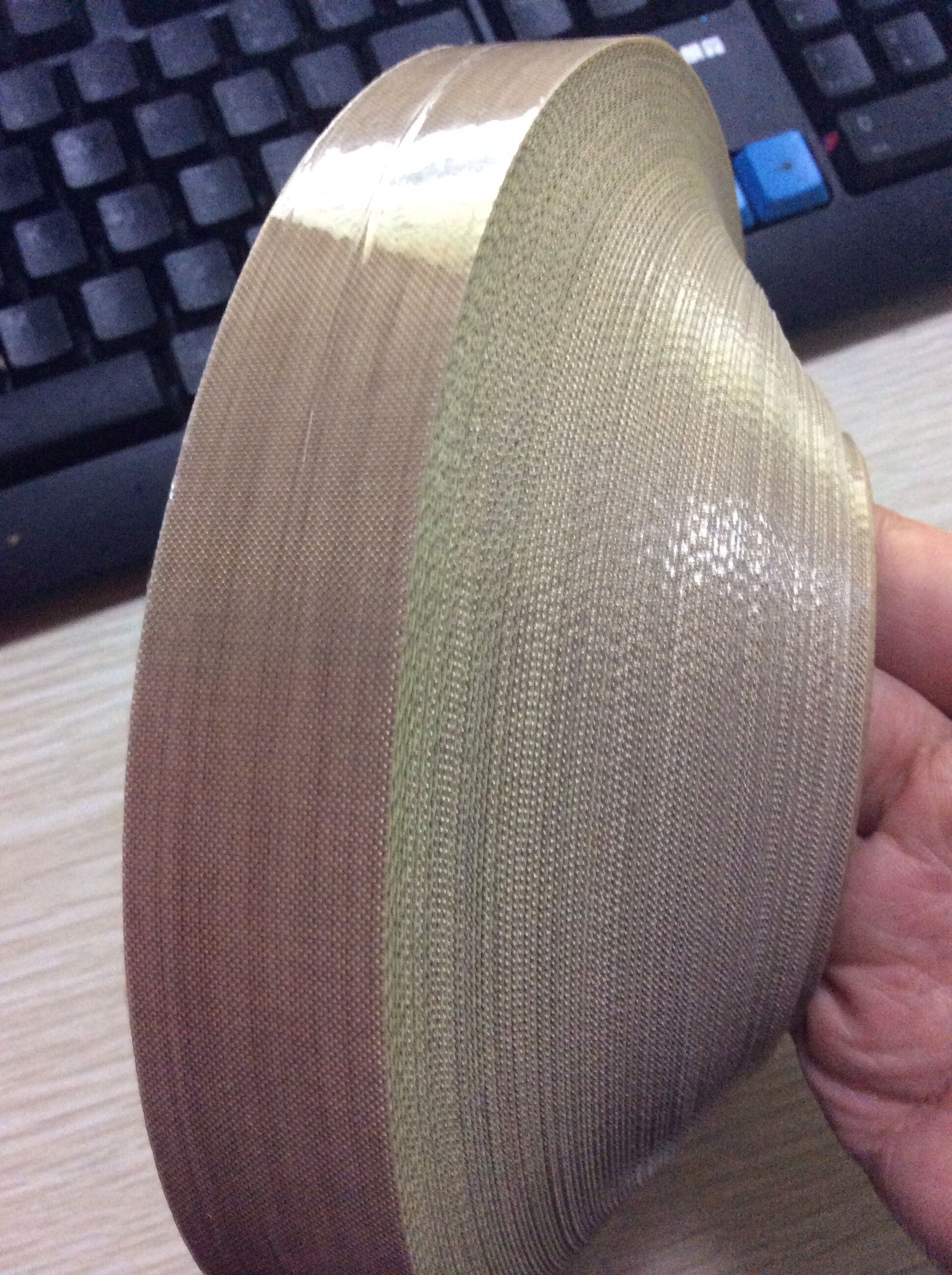

High temperature ptfe adhesive tape with release paper
Product Description
Vichen produced Ptfe adhesive tapes, teflon tapes, teflon adhesive tapes, Ptfe cloth adhesive, teflon cloth adhesive. Welcome you purchase our standard products or send us your OEM requests.
Product Details
|
Material: PTFE |
Use: Bag Sealing |
Adhesive Side: Single Sided |
|
Adhesive: Silicone |
Adhesive Type: Hot Melt, Pressure Sensitive |
Feature: Antistatic |
|
Design Printing: No Printing |
Place of Origin: Jiangsu, China (Mainland) |
Brand Name: Vichen heat resistant insulation tape |
|
Model Number: FS7005-FS7025 |
Color: brown, black |
|
Specifications
heat resistant insulation tape
1.Manufacturer,stocked.
2.Super non-sticky character, high temperature resistance
3.PONY/SGS
adhesive tapes Description:
adhesive tapes is the one using polytetrafluoroethylene (PTFE) film as base material. Single surface treated and coated with silicone adhesive with excellent heat resistance. The tape exhibits superior features such as desirable electrical properties, heat resistance, chemical resistance and non-adhesiveness.
adhesive tapes Properties:
1.The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as electrical properties, resistance to heat, weather, chemical, and water (water shedding), and non-adhesiveness
2.Superior tensile strength.
3.Superior flame resistance.
4.Can be used in a wide range of temperature (-60°C-180°C), however, it may vary according to the use condition.
PTFE FABRIC ADHESIVE TECHNICAL DATA:
|
|
Thickness |
Max Width |
Length |
Colour Available |
|
|
mm |
mil |
||||
|
RD7005 |
0.05 |
3.0 |
1000mm |
10~55m |
BLACK/BROWN |
|
RD7013 |
0.13 |
5.0 |
1000mm |
10~55m |
BLACK/BROWN |
|
RD7018 |
0.18 |
7.0 |
1000mm |
10~55m |
BLACK/BROWN |
|
RD7025 |
0.25 |
10.0 |
1000mm |
10~55m |
BLACK/BROWN |
adhesive tapes Applications:
1.For roll wrapping in polyethylene laminators (Suitable for long continuous use as the tape has superior durability and mechanical strength).
2.For endless belts of polyethylene laminators.
3.For insulation of coils as a class H insulating material.
4.Can be laminated with metals, plastics and ceramics as general sliding materials.
| Model | Adhesive | Backing | Color | Thickness |
Width (mm) |
Length (m) |
Elongation (%) | Peel Force | Tensile Strength(N/25mm) | Heat Resistance(°C) | |
| (mm) | (N/25mm) | Short time | Long time | ||||||||
| RD803 | Silicone |
Teflon Coated glass cloth |
Brown | 0.18±0.05 | 500 | 10 | ≥3% | 6 | 350 | 260 | 180 |
| RD80066 |
Teflon Film Tape |
0.06±0.05 | 500 | 30 | ≥140% | 5 | 15 | 260 | 180 | ||
| RD8008 | 0.08±0.05 | 500 | 30 | ≥1400% | 5 | 15 | 260 | 180 | |||
| RD8013 | 0.13±0.05 | 500 | 30 | ≥140% | 5 | 21 | 260 | 180 | |||
| RD8018 | 0.18±0.05 | 500 | 30 | ≥140% | 6 | 20 | 300 | 180 | |||
| Tester | ASTM-1000 | ASTM D-897 | STM D-3330 | ASTM D-3654 |
40 Minutes 100g Static Hanging |
10000 Minutes 250g Shear Force |
|||||
