ptfe coated glass fabric
fiberglass fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE(Teflon) resin then make it into various PTFE(Teflon) fabric in different thickness and widths.
Ruida PTFE Fabric Characteristic :
Generally, PTFE coated fiberglass fabric exhibits the following high-performance characteristics:
Non-stick surface
Excellent temperature resistance: from -100°F - +500°F (-73°C - +260°C)
Chemically inert
High tensile strength
Ruida PTFE Fabric Application:
Designed for a wide range of applications,Ruida PTFE fabric is available in several grades to match specific performance requirements.
Ruida Premium-A+ Grad ptfe Fabric
Featuring an extra heavy coating of PTFE, Ruida Premium- A Grade Fabric delivers a super-smooth surface, perfect for advanced applications, including:
Release sheets for cooking and baking applications
Laminate separator sheets
Specialized heat-sealing
Demanding, non-stick applications
Ruida Standard-A Grade PTFE Fabric
With a smooth surface and superb non-stick properties, Ruida Standard-A Grade Fabric serves the widest range of applications, including:
Release sheets on heat-sealing machines and laminate presses
Non-stick surfaces for paints, adhesives and food products
Gaskets, seals and bearings for chemicals, oils and gases
Thermal insulation for high-temperature and chemical-resistant applications
Covers for hot plates, platens, chutes, hoppers, troughs and rolls
Ruida Mechanical-B+ Grade PTFE Fabric
Designed to deliver resistance to high temperatures and chemicals, Ruida Mechanical-B Grade Fabric utilizes a medium coating of PTFE. Typical applications include chemical-resistant laboratory aprons and protective curtains, such as:
Bottle washers and paint spraying curtains
Food packaging
Acid protection
Ruida Economy-B Grade PTFE Fabrics
Providing a light coat of PTFE, Taconic Economy-Grade Fabrics are designed for large volume applications which require cost-efficiency, yet still need high performance. Typical uses include:
Leaders for processing paper, plastics, metallic foils and cloth
Separator sheets for processing uncured rubber
The manufacture of abrasive wheels
Ruida Porous Bleeder & Filter PTFE Fabrics
These fabrics are available over a wide range of porosity. Principle applications include:
filtration
strainers
pollution abatement
Ruida Crease & Tear Resistant PTFE Fabric
Provides an unusually flexible material for use in applications where high tear-strength and good flex-life are demanded.
Ruida Anti-static PTFE Fabrics
Ruida black Anti-static PTFE fabrics is provided with a carbon loading giving semi-conductive and anti-static properties to the material. It eliminates or reduces static problems in belt and slip sheet applications.
Specification details:
|
Part Number |
Overall Thickness (inches) |
Coated Weight (lbs/yd2) |
Tensile Strength Warp/Fill (lbs/in) |
TearStrength Warp/Fill (lbs) |
Max.Width(mm) | ||
| Premium Grade | |||||||
| 9039 | 0.0029 | 0.27 | 95/55 | 1.5/0.9 | 3200 | ||
| 9012 | 0.0049 | 0.49 | 150/130 | 2.5/2.0 | 1250 | ||
| 9015 | 0.006 | 0.6 | 150/115 | 2.1/1.8 | 1250 | ||
| 9025 | 0.0099 | 1.01 | 325/235 | 7.5/4.0 | 2800 | ||
| 9028AP | 0.011 | 1.08 | 320/230 | 5.4/3.6 | 2800 | ||
| 9045 | 0.0148 | 1.45 | 350/210 | 5.6/5.1 | 3200 | ||
| Standard Grade | |||||||
| 9007AJ | 0.0028 | 0.25 | 90/50 | 1.7/0.9 | 1250 | ||
| 9010AJ | 0.004 | 0.37 | 140/65 | 2.6/0.7 | 1250 | ||
| 9011AJ | 0.0046 | 0.46 | 145/125 | 3.0/2.2 | 1250 | ||
| 9014 | 0.0055 | 0.54 | 150/140 | 2.0/1.5 | 1250 | ||
| 9023AJ | 0.0092 | 0.94 | 250/155 | 4.9/3.0 | 2800 | ||
| 9035 | 0.0139 | 1.36 | 440/250 | 7.0/6.0 | 3200 | ||
| 9065 | 0.0259 | 1.76 | 420/510 | 15.0/8.0 | 4000 | ||
| Mechanical Grade | |||||||
| 9007A | 0.0026 | 0.2 | 80/65 | 2.3/1.0 | 1250 | ||
| 9010A | 0.004 | 0.37 | 145/135 | 2.3/1.6 | 1250 | ||
| 9021 | 0.0083 | 0.8 | 275/190 | 8.0/3.0 | 1250 | ||
| 9030 | 0.0119 | 1.14 | 375/315 | 7.0/6.0 | 2800 | ||
| Economy Grade | |||||||
| 9007 | 0.0026 | 0.17 | 70/60 | 2.9/0.8 | 1250 | ||
| 9010 | 0.004 | 0.36 | 135/115 | 3.0/2.7 | 1250 | ||
| 9023 | 0.0092 | 0.72 | 225/190 | 4.4/3.2 | 2800 | ||
| 9018 | 0.0074 | 0.7 | 270/200 | 8.0/4.0 | 1250 | ||
| 9028 | 0.0112 | 0.98 | 350/300 | 15.0/11.0 | 3200 | ||
| 9056 | 0.0222 | 1.34 | 320/250 | 50.0/40.0 | 4000 | ||
| 9090 | 0.0357 | 2.04 | 540/320 | 10.8/23.0 | 4000 | ||
| Porous Bleeder & Filter | |||||||
| 9006 | 0.0025 | 0.12 | 40/30 | 5.3/4.0 | 1250 | ||
| 9034 | 0.0135 | 0.77 | 175/155 | 21.0/12.0 | 3200 | ||
| Crease & Tear Resistant | |||||||
| 9008 | 0.0032 | 0.31 | 90/50 | 1.6/0.5 | 1250 | ||
| 9011 | 0.0046 | 0.46 | 125/130 | 4.1/3.7 | 1250 | ||
| 9014 | 0.0056 | 0.52 | 160/130 | 5.0/3.0 | 1250 | ||
| 9066 | 0.0261 | 1.8 | 450/430 | 50.0/90.0 | 4000 | ||
| TAC-BLACK™ (Available anti-static) | |||||||
| 9013 | 0.0048 | 0.45 | 170/140 | 2.2/1.8 | 1250 | ||
| 9014 | 0.0057 | 0.55 | 150/120 | 1.7/1.4 | 1250 | ||
| 9024 | 0.0095 | 0.92 | 230/190 | 4.0/3.0 | 2800 | ||
| 9024AS | 0.0095 | 0.92 | 230/190 | 4.0/3.0 | 2800 | ||
| 9037AS | 0.0146 | 1.39 | 405/270 | 8.5/7.2 | 3500 | ||
About us:

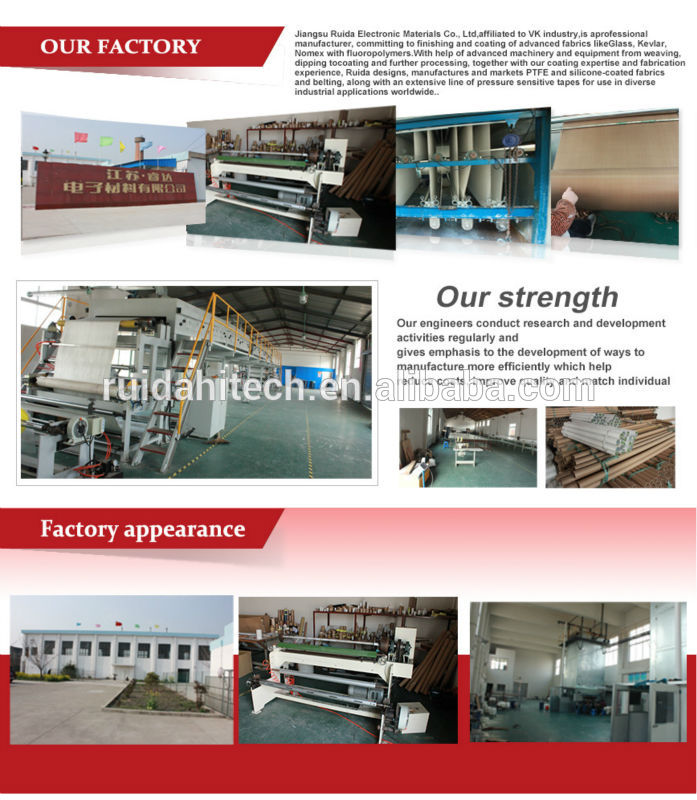

Jiangsu Ruida Electronic Materials Co., Ltd,affiliated to VK industry,is a professional manufacturer, committing to finishing and coating of advanced fabrics like Glass, Kevlar, Nomex with fluoropolymers.
With help of advanced machinery and equipment from weaving, dipping to coating and further processing, together with our coating expertise and fabrication experience, Ruida designs, manufactures and markets PTFE and silicone-coated fabrics and belting, along with an extensive line of pressure sensitive tapes for use in diverse industrial applications worldwide..
Our engineers conduct research and development activities regularly and
gives emphasis to the development of ways to manufacture more efficiently which help reduce costs, improve quality and match individual requirements.
The main series of our products are: PTFE coated fiberglass fabric, PTFE
open mesh belts, PTFE adhesive tapes, PTFE fusing belts & seamless belts, PTFE coated Kevlar fabric & mesh, Silicone coated fiberglass fabric etc.
