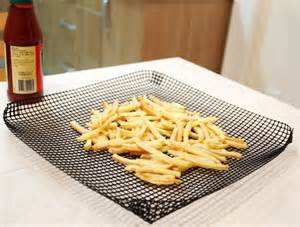

PTFE coated Oven Basket /Baking Mesh Tray
PTFE(Teflon) coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE(Teflon) resin to make it into various of PTFE(Teflon) conveyor belt.
Usage:
PTFE(Teflon) open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.
Properties:
1. Outstanding temperature resistance (from -170ºC to +260ºC)
2. Resistant to corrosive agents
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. High dielectric strength
7. Dimensional stability
8. Resistance to UV, IR and HF
9. Non-toxic
10. Superior tracking
Styles and Specifications:
Item |
Mesh Size |
material |
Thickness |
Weight |
Temperature resistance |
Max Width |
Tensile Strength |
RD6001 |
1x1mm |
fiberglass |
0.5mm |
370g/m² |
-70-260°C |
4000mm |
310/290N/cm |
RD6002 |
2x2mm |
fiberglass |
0.7mm |
450g/m² |
-70-260°C |
4000mm |
350/310N/cm |
RD6003 |
4x4mm |
fiberglass |
1.0mm |
400g/m² |
-70-260°C |
4000mm |
390/320N/cm |
RD6004 |
4x4mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
390/320N/cm |
RD6007 |
4x4mm |
Kevlar + fiberglass |
1.2mm |
600g/m² |
-70-260°C |
4000mm |
895/370N/cm |
RD6008 |
4x4mm |
fiberglass |
1.2mm |
580g/m² |
-70-260°C |
4000mm |
560/360N/cm |
RD6010 |
4x4mm |
Kevlar |
1.0mm |
500g/m² |
-70-260°C |
4000mm |
900/600N/cm |
RD6012 |
4x4mm |
fiberglass |
1.0mm |
550g/m² |
-70-260°C |
4000mm |
395/370N/cm |
RD6013 |
10x10mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
360/300N/cm |
RD6014 |
0.5x1mm |
fiberglass |
0.5mm |
420g/m² |
-70-260°C |
4000mm |
310/290N/cm |
RD6015 |
2x2.5mm |
fiberglass |
0.9mm |
600g/m² |
-70-260°C |
4000mm |
390/320N/cm |
About us:
Jiangsu Ruida Electronic Materials Co., Ltd,affiliated to VK industry,is a professional manufacturer, committing to finishing and coating of advanced fabrics like Glass, Kevlar, Nomex with fluoropolymers.
With help of advanced machinery and equipment from weaving, dipping to coating and further processing, together with our coating expertise and fabrication experience, Ruida designs, manufactures and markets PTFE and silicone-coated fabrics and belting, along with an extensive line of pressure sensitive tapes for use in diverse industrial applications worldwide..
Our engineers conduct research and development activities regularly and
gives emphasis to the development of ways to manufacture more efficiently which help reduce costs, improve quality and match individual requirements.
The main series of our products are: PTFE coated fiberglass fabric, PTFE
open mesh belts, PTFE adhesive tapes, PTFE fusing belts & seamless belts, PTFE coated Kevlar fabric & mesh, Silicone coated fiberglass fabric etc.
