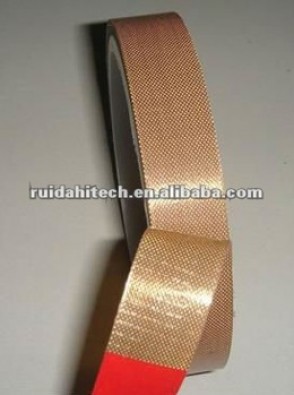

High temperature ptfe teflon coated fiberglass adhesive tape teflon adhesive fabric cloth
|
Material: PTFE |
Use: Bag Sealing |
Adhesive Side: Single Sided |
|
Adhesive: Silicone |
Adhesive Type: Hot Melt, Pressure Sensitive |
Feature: Antistatic |
|
Design Printing: No Printing |
Place of Origin: Jiangsu, China (Mainland) |
Brand Name: RUIDA heat resistant insulation tape |
|
Model Number: RD7013-RD7030 |
Color: brown, black |
|
Packaging & Delivery
Packaging Details: ptfe/teflon coated fiberglass cloth is packed by bubble plastic and then hard plastic sheet outside.
Delivery Detail: 3-10day to deliver ptfe/teflon adhesive tapes according to order
Specifications
1. Manufacturer
2.hot sealing,chemical resistance,smooth surface
3. Complete specification
4. SGS,Rohs
PTFE (Teflon) fabric with adhesive is PTFE fabric or PTFE film add silicone pressure sensitive adhesive which provides an excellent release surface for a diversity of industrial applications requiring high temperature, electrical resistance, mechanical strength, fire retardancy and cost effectiveness.
We have two kinds of PTFE(Teflon) adhesive tape: one kind has fiberglass as its basic fabric to increase its strength, another one is pure Teflon PTFE adhesive tape.
PTFE fiberglass adhesive fabric, also named Teflon fiberglass adhesive fabric, mainly used in windows frame producing, packaging, sealing industries.
PTFE FABRIC ADHESIVE TECHNICAL DATA:
|
Item |
Thickness |
Max Width |
Adsive Strhegh (to Steel) |
Tensile Strength |
Temperature |
Remark |
|
RD7013 |
0.13mm |
1250mm |
22N/100mm |
900N/100mm |
-70~260°C |
basic cloth 0.08mm |
|
RD7018 |
0.18mm |
1250mm |
28N/100m |
1700N/100mm |
-70~260°C |
basic cloth 0.13mm |
|
RD7025 |
0.25mm |
1250m |
48N/100m |
2750N/100mm |
-70~260°C |
basic cloth 0.18mm |
|
RD7030 |
0.30mm |
1250mm |
62N/100mm |
3650N/100mm |
-70~260°C |
basic cloth 0.25mm |
Pure PTFE adhesive tape, also named pure Teflon adhesive tape, features more flexible and it is insulating, it mainly used in electrical industry.
| Model | Adhesive | Backing | Color | Thickness |
Width (mm) |
Length (m) |
Elongation (%) | Peel Force | Tensile Strength(N/25mm) | Heat Resistance(°C) | |
| (mm) | (N/25mm) | Short time | Long time | ||||||||
| RD803 | Silicone |
Teflon Coated glass cloth |
Brown | 0.18±0.05 | 500 | 10 | ≥3% | 6 | 350 | 260 | 180 |
| RD80066 |
Teflon Film Tape |
0.06±0.05 | 500 | 30 | ≥140% | 5 | 15 | 260 | 180 | ||
| RD8008 | 0.08±0.05 | 500 | 30 | ≥1400% | 5 | 15 | 260 | 180 | |||
| RD8013 | 0.13±0.05 | 500 | 30 | ≥140% | 5 | 21 | 260 | 180 | |||
| RD8018 | 0.18±0.05 | 500 | 30 | ≥140% | 6 | 20 | 300 | 180 | |||
| Tester | ASTM-1000 | ASTM D-897 | STM D-3330 | ASTM D-3654 |
40 Minutes 100g Static Hanging |
10000 Minutes 250g Shear Force |
|||||
